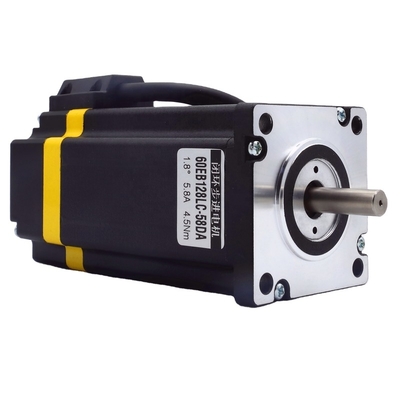

Name: Electric Closed Circuit Kit 60EB138LC-58DA Nema23 60EB128LC-58DA Stepper Motor Drive Kit 60 Closed Loop Motor Driver
Brand: Electric Closed Circuit Kit 60EB138LC-58DA Nema23 60EB128LC-58DA Stepper Motor Drive Kit 60 Closed Loop Motor Driver
SKU: 60EB128LC-58DA
Rating: 4.5 (157 reviews)

Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα

Χαρακτηριστικά

Προδιαγραφές

Warranty: 3months-1year

Model Number: 60EB128LC-58DA

Phase: 2

Type: Hybrid

Current / Phase: 5.8A

Product name: Nema 23 Close loop Stepper Motor

Step Angle(degrees): 1.8deg

Motor length: 128mm

Shaft Diameter: 8mm

Torque: 4.5Nm

Πιστοποίηση: CCC, ISO

Βασικές πληροφορίες

Πιστοποίηση: CCC, ISO

Model Number: 60EB128LC-58DA

Πληρωμής & Αποστολής Όροι

Περιγραφή προϊόντων

No	Specification	Details
1	Model	60EB128LC-58DA
2	Phase	2
3	Step Angle	1.8°±5%
4	Amp/Phase	4.2A
5	Resistance	0.5 ±10%Ω/Phase
6	Holding Torque	2.2Nm
7	Inductance	1.8±20%mH/Phase
8	Lead Style	2M

High efficiency and low energy consumption

Smooth and accurate operation
High speed and high torque
Wide application
Low noise and long service life
Technical support and good aftermarket

High performance closed loop motor driver

Product Superiority

1**Adopts new 32 - bit motor control dual - core DSP chip.

2**Adopting advanced vector current and speed and position closed-loop control algorithm.

3**The ratio of static current and dynamic current can be set arbitrarily (within the range of 0-- 7A)

4**Accurate positioning, motor will not be out of step.

5**Stable positioning, it will automatically return to its original position even if affected by external forces, such as mechanical
vibration or vertical positioning

Beijing Haijie Jiechuang Technology Co., Ltd. is a professional supplier of CNC automation products. The company founder team members are all engineers, with more than 10 years of industry technical experience. The company's main products are seven categories: 1. Straight line module slide table, including high-precision ball screw module, high-speed mute synchronous belt module and heavy gear rack module, etc; 2. Servo system, including 50W-10KW AC servo motor and driver, 30-400W low voltage DC servo motor and driver; 3. Stepper systems,20-130 series two-phase and three-phase stepper motors and drivers,42-110 series closed-loop stepper motors and drivers; 4. DC brushless system, including 20W-2.5KW high and low voltage brushless motor and driver; 5. The planet reducer, including 3 arc minute high precision reducer and high cost performance standard reducer; 6. Multi-axis intelligent motion controller; 7. Meanwell Switching Power Supply; Our factory is located in Jiangsu Province, one of the four major motor industry bases in China, with dozens of CNC machining centers, and a number of automatic production line factories can achieve servo system monthly production capacity of 12,000 sets, stepper and DC brushless system monthly production capacity of 27,000 sets, linear module sliding table monthly production capacity of 9,000 sets. We provide cost-effective automation products, but also to provide quality pre-sale and after-sales service, linear module products to provide 1-year free warranty, servo, step, brushless DC system to provide 2-year free warranty.

Company Profile

Warehouse pictures

FAQ

1.What's the order process? 1）Inquiry---provide us all clear requirements (total qty and package details). 2)Quotation---officaial
quotation from with all clear specifications from our professional team. 3)Marking Sample --- confirm all quotation details and
the final sample. 4)Production---mass production. 5)Shipping---by sea or by air. 2.What terms of payment you use? As for the payment terms,it depends on the total amount.
3.How do you ship the products? By Sea ,By Air ,By courier, TNT , DHL, Fedex, UPS Etc. It is up to you .
4.What is the average delivery time? Sample usually takes about 10-20days depending on product type. Bulk order usually takes
about 35 days.
5.How would I get a price list for a wholesaler ? Please e-mail us, and tell us about your market with MOQ for each order. We
would send the competitive price list to you ASAP.
