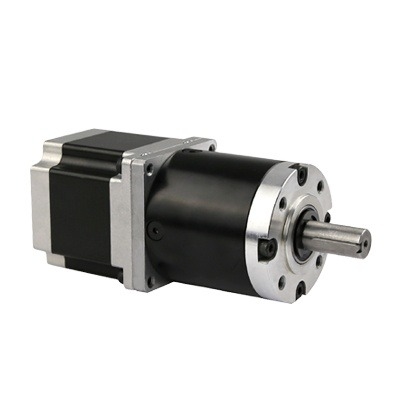

NEMA 23 1.8 Degree 57mm Automatic Two Phase Planetary Gear Reducer Manufacturer Industry Stepper Motor For Machine

1 Piece
MOQ
$83.50(1 - 199 Pieces) $73.80(200 - 499 Pieces) $65.20(>=500 Pieces)
τιμή
NEMA 23 1.8 Degree 57mm Automatic Two Phase Planetary Gear Reducer Manufacturer Industry Stepper Motor For Machine
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Warranty: 3months-1year, one year
Model Number: 57HS41-1504A
Phase: 2, 2
Type: Permanent Magnet
Current / Phase: 2.0A
Brand: ZZ-motor
Product name: 57HS41-1504A
Diameter: 57mm
Motor length: 41mm
Motor weight: 470g
Holding Torque: 0.55N.m
Usage: Automatic Industry
Πιστοποίηση: ce, ISO, RoHS
Βασικές πληροφορίες
Πιστοποίηση: ce, ISO, RoHS
Model Number: 57HS41-1504A
Πληρωμής & Αποστολής Όροι
Packaging Details: 1.Carton box with foam 2.Box can be customized as you require
Supply Ability: 100 Box/Boxes per Day
Περιγραφή προϊόντων
Product Description
Electrical performance

Housing material          metal
bearing at output        ball bearings
Radial load                    ≤  250N
Shaft axial load             ≤  100N
Radial play of shaft         ≤ 0.08mm
Shaft press fit force max    ≤  0.4mm
Backlash, at no-load           ≤1.5°
电机型号
Model
机身长
Length
L mm
相电流
A/phase
相电阻
Ω/phase
相电感
m H/phase
静转矩
Holding Torque N.m
转动惯量
Rotor Inertia
g.c㎡
引线数
Lead wire
NO.
电机重量
Motor weight
57HS41-1504A
41
2.0
1.2
2.5
0.55
150
4
470
57HS56-3004A
56
3.0
1.1
3
1.0
280
4
680
57HS76-3004A
76
3.0
0.5
2.4
1.6
440
4
1050
57HS84-3004A
84
3.0
0.57
2.5
2.0
530
4
1130
57HS100-4204A
100
4.2
0.9
3.8
2.4
680
4
1250
57HS112-4204A
112
4.2
0.9
3.8
2.5
800
4
1400
减速级数
number of gear trains
1级
2级
3级
4级
减速比
reduction ratio
3.6,4.3
13,15,18
47,55,65,77
168,198,234,276,326
减速机长度(L2)  mm
53
61
72
84
额定允许负载   N.m
9
15
24
30
瞬时允许负载    N.m
27
45
72
90
效率      %
90
81
73
66
重量   g
420
460
580
690
Packing
Packaging Details: Cartons and pallets
Port:ShangHai
Lead Time :20 days

Delivery
1.Carton box with foam
2.Box can be customized as you require
3.Usually 15-30days.
shipping
Company Introduction
Chang zhou zhongzhi electric Motor and Electric Appliance CO LTD is a leading manufacturer of electric motors and control systems. Our core products include brushless dc motors,stepper motors,brushless DC servo motors, closed-loop hybrid stepper motors,linearmotor and drivers. The products are mainly used in :laboratory equipments. Medical instruments,advertising equipments, subwayequipments.,surveillance products,textile industry and other automation equipments
Changzhou zhongzhi motor has become one of the majopr solution provider for domestic and overseas motor and control system marketdue to its accurate market positioning,highly efficient and professional R&D team as well as high –quality products.
We insist on product innovation and strictly following the iSO9001 procedure and Rohs standard,our six series core products havebeen certified by CE and widely exported to Europe and many other countries.
Thanks to our high-quality products and excellent customer service. We have obtained great reputation among our domestic andforeign customers


our products
our certification
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 100% T/T in advance
