Name: NEMA 23 Automation Equipment Manufacturer 2 Phase Hybrid Stepper Motor With 1.8 Degree Step Angel
Brand: NEMA 23 Automation Equipment Manufacturer 2 Phase Hybrid Stepper Motor With 1.8 Degree Step Angel
SKU: PST57H255-4P30
Price: 14.80 USD
Availability: InStock
Rating: 4.7 (120 reviews)

Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα

Χαρακτηριστικά

Προδιαγραφές

Warranty: 1year

Model Number: PST57H255-4P30

Phase: 2, 2

Type: Hybrid

Current / Phase: 3A

Frame Size: 57mm

Color: Black HB

Length: 55.5mm

Connection type: Connector

Application: Automation Equipment

Torque: 1

Resistance/Phase: 0.7 Ohms

Πιστοποίηση: ce, ISO, RoHS

Βασικές πληροφορίες

Πιστοποίηση: ce, ISO, RoHS

Model Number: PST57H255-4P30

Πληρωμής & Αποστολής Όροι

Packaging Details: Inner package is EPE foam, the outer package is carton. Generally carton size:39cmx25cmx24cm Carton size also can be customized according to the customer's requirements.

Supply Ability: 250000 Piece/Pieces per Month

Περιγραφή προϊόντων

Specification

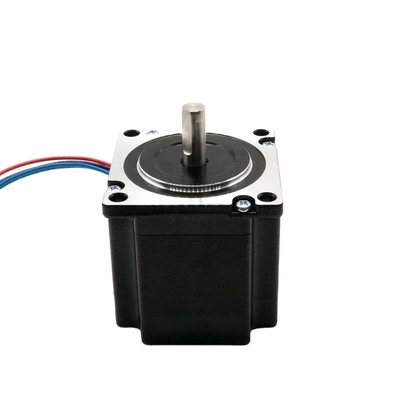

Manufacturer of Nema 23 2 Phase Hybrid Stepper Motor with 1.8 degree Step Angel

Model	PST57H255-4P30
Holding Torque (N.m)	1.2
Rated Current (A/Phase)	3
Resistance (Ω/Phase)	0.7
Inductance (mH/Phase)	2.4
Inertia (g.cm2)	280
Weight (kg)	0.72
Length(mm)	55.5

Please note: This outline shows a dual-shaft motor

The single-shaft motor does not have the blue part shaft and the blue part shaft and the * mark hole demensions

Advantages:

* High Torque: Usongshine stepper motor Adopting high quality motor steel material, is provided with high torque , low self-inductance reactance, responsive and can avoid system error.Low loss stators have better high speed performance.
* Low Resistance: Usongshine stepper motor can get a lower resistance value compared to motors of the same thickness and torque. This considerably increases the thermal conductivity of the motor. This effectively reduces the increase in temperature.
* Wide Application: This small stepper motors can be used in various area, such as 3D printer; stage lighting; laser engraving;
textile machinery; medical equipment; placement machine; non-standard equipment; automation equipment etc.
* Excellent Service: CE certified：Each nema 17 stepper motor has undergone a rigorous quality control ex works . If need further

Typical Applications:
•Automation and inspection
• Conveyor transfer
• Cut-to-length metal, plastic, fabric, etc
• Industrial HVAC
• Material handling
• Medical equipment
• Office peripheral equipment
• Packaging systems
• Pick-and-place applications
• Printing systems
• Robotics
• Semiconductor manufacturing
• Many others

Company Profile

CHANGZHOU PROSTEPPER CO.,LTD. specializes in offering 2-Phase, 3-Phase hybrid
stepper motors, covering a wide of applications with a frame size of NEMA8 to 42. Made of high quality cold roll sheet copper and anti-high temperature magnet, all of Proatepper’s hybrid steppers are a complete design of high reliabilityhigh accuracy, and featuring low noise, low vibration, low motor heating and smooth run. Besides conventional solutions, custom housing and winding, shaft modification, as well as encoder, brake, gearbox adders are also available to optimize the product's performance for you needs.

With advanced stepper motor production equipment and production line, quality management systems and test equipment. The products are mainly used in various type of automatic precision control equipment such as stage lighting, absorbing the essence of motor manufacturing, so that the quality of products is continuously improved and the enterprise is constantly developing. Prostepper motor insists on using stable quality and creating a good reputation to realize prostepper’s commitment to customers.

Packing & Delivery

Package
Frame Size(mm)	Motor Size(mm)	Carton Size(cm)	Package(sets/carton)
42	full series	392524	(10*4)40
57	below 55	392524	(8*3)24
57		more than 55	392524	(5*3)15
60	below 56	392524	(8*3)24
60		more than 56	392524	(4*3)12
85/86	full series	323014	2

packing size is 39cmx25cmx24cm. You can choose airexpress DHL, UPS, Fedex or other airexpress.

FAQ

1. What is the warranty for your products?
A1:One year warranty for all electronic products.
If any quality problems on our side occurred in this period, we will take on the shipping cost and replacement.

2. How can we know the product quality?
A2:We suggest you to order a sample. Also, we you can send us email for detail photos for checking if you cannot get enough information in the product page.

3. How can we get your catalog?
A3.Please go our home or contact directly.

4. Is this your final price? May I have the discount?
A4:All products will according to the quantity

5. Can we visit your factory?
A5: Yes, we are looking forward to arrival customers.
